Cod Produs: 041513-908

Descriere:

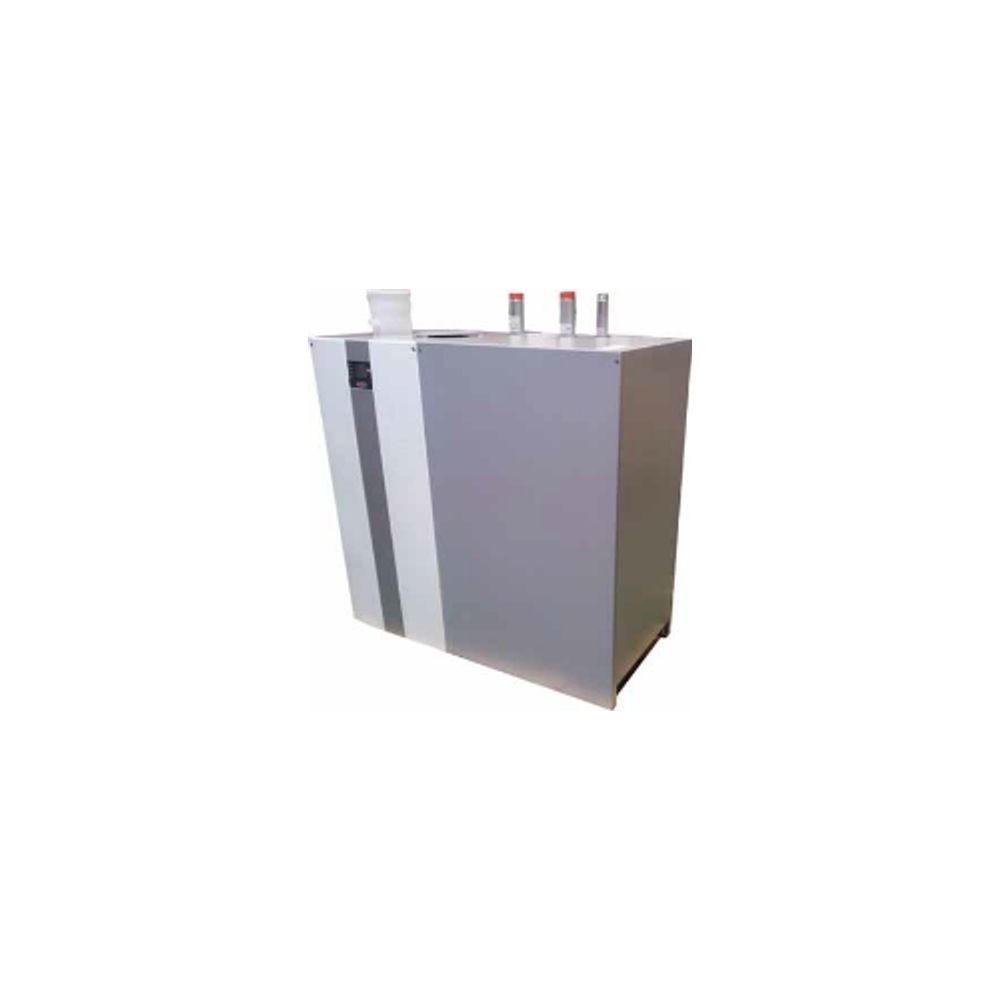

Cazan de pardoseala in condensatie MGK-2 550 - WOLF

Caracteristici:

- schimbator de caldura din elementi de aluminiu / siliciu cu inalt transfer termic

- compacte, amprenta la sol mica

- functionare extrem de silentioasa

- plaja de modulare 17÷100% si eficienta pana la 110%

- semnal 0-10V pt BMS

- posibilitate de functionare cu aspiratie/refulare din/in exterior (blanced flue operation)

- functionare in cascada pana la 5 cazane ajungand la o putere maxima de 5 MW

- comunicare via Smartphone, laptop sau PC prin modulul LAN / WLAN Wolf Link Home

Specificatii:

Adancime (mm)

850

Alimentare electrica

1x230V / 50 Hz cu alternativa 3x400V / 50 Hz

Alimentare gaz

Condens la 40°/30°C (l/h)

Consum electric sarcina partiala/maxima (W)

48 / 580

Continut de apa (l)

62.0

Eficienta la 30% (%)

108.6

Eficienta la Qmax cu 50°/30°C (%)

105.4

Eficienta la Qmax cu 80°/60°C (%)

98.2

Inaltime (mm)

1,460

Latime (mm)

1,860

Masa totala (kg)

450

Model

MGK-2 550

Plaja de modulare (%)

17÷100

Presiune disponibila la ventilator (Pa)

150

Presiune maxima (bar)

6.0

Putere termica maxima (50°/30°C) (kW)

549.3

Putere termica maxima (80°/60°C) (kW)

511.6

Putere termica minima (50°/30°C) (kW)

94.0

Putere termica minima (80°/60°C) (kW)

84.5

Racord aspiratie (mm)

200

Racord evacuare gaze (mm)

250

Racord retur

DN80

Racord tur

DN80

SPECIFICATII TEHNICE / MODEL (U.M.)

MGK-2 550

Temperatura maxima (°C)

90.0
