SANITABUILD

INCALZIRE SI ACM

Cazane de pardoseala in condensatie

Cod Produs: VARMAX 600

Descriere:

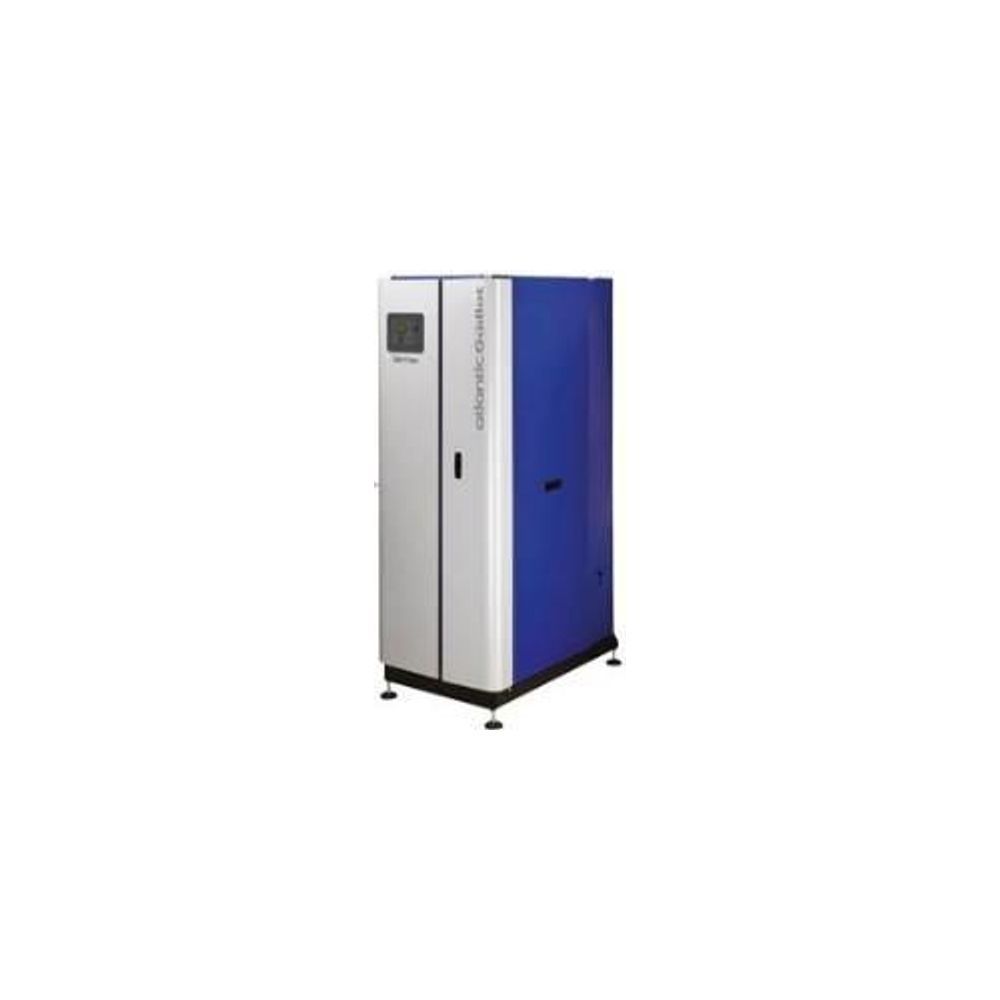

Cazan pardoseala in condensatie VARMAX 600 - YGNIS

Cazan pardoseala in condensatie VARMAX
600 - YGNIS

VARMAX sunt cazane in condensatie din otel inox cu arzator premix:

- sunt produse de YGNIS in Franta

- Plaja de modulare de la 20% la 100%

- puteri de la 120 kW la 600 kW

- posibilitate de conctare in cascada pana la 16 cazane (putere maxima 7,2 MW)

- Navisistem B3000 regulator + accesorii automatizare SIEMENS

- 1 sau 2 racorduri de retur (pt circ de joasa temparatua si circuit de inalta temperatura)

- posibilitate de functionare cu aspiratie/refulare din/in exterior (blanced flue operation)

Specificatii:

Adancime (C) (mm)

1588

Alimentare gaz

2"

Clasa Nox (cf EN656 si EN13836)

6

Cod MFG

041513-810

Continut de apa in cazan (l)

420

Eficienta la 30% (retur 30°C) (%)

108.9

Eficienta la Qmax cu 50°/30°C (%)

106.3

Eficienta la Qmax cu 80°/60°C (%)

97.8

Golire

1"

Inaltime (B) (mm)

2016

latime (A) (mm)

1161

Masa (kg)

800

Model

VARMAX 600

Presiune maxima (bar)

6

Putere electrica consumata (la Qnom) (W)

800

Putere termica maxima (50°/30°C) (kW)

637

Putere termica maxima (80°/60°C) (kW)

586

Racord aspiratie (mm)

180

Racord refulare (mm)

200

Racorduri hidraulice

DN80

Temperatura maxima (°C)

85
