Cazane de pardoseala in condensatie

Cod Produs: VARMAX 320

Descriere:

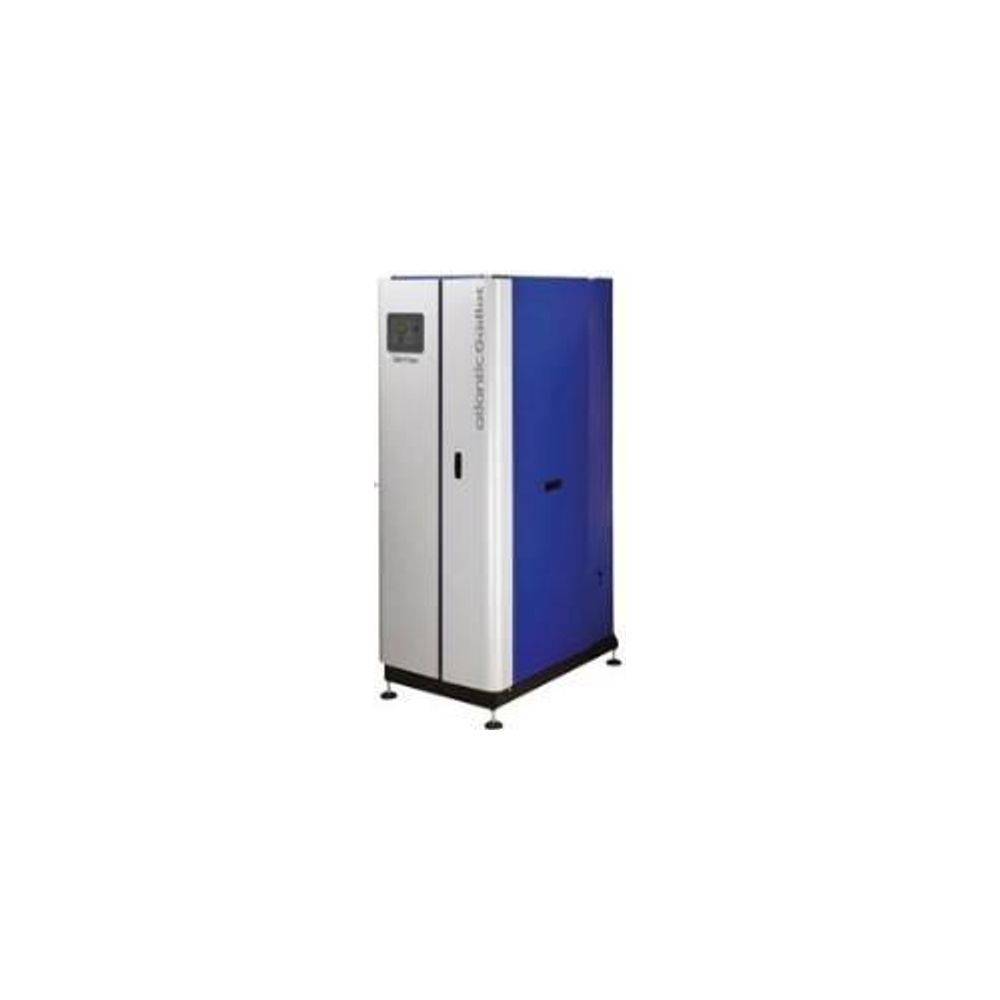

Cazan pardoseala in condensatie VARMAX 320 - YGNIS

Cazan pardoseala in condensatie VARMAX
320 - YGNIS

VARMAX sunt cazane in condensatie din otel inox cu arzator premix:

- sunt produse de YGNIS in Franta

- Plaja de modulare de la 20% la 100%

- puteri de la 120 kW la 600 kW

- posibilitate de conctare in cascada pana la 16 cazane (putere maxima 7,2 MW)

- Navisistem B3000 regulator + accesorii automatizare SIEMENS

- 1 sau 2 racorduri de retur (pt circ de joasa temparatua si circuit de inalta temperatura)

- posibilitate de functionare cu aspiratie/refulare din/in exterior (blanced flue operation)

Specificatii:

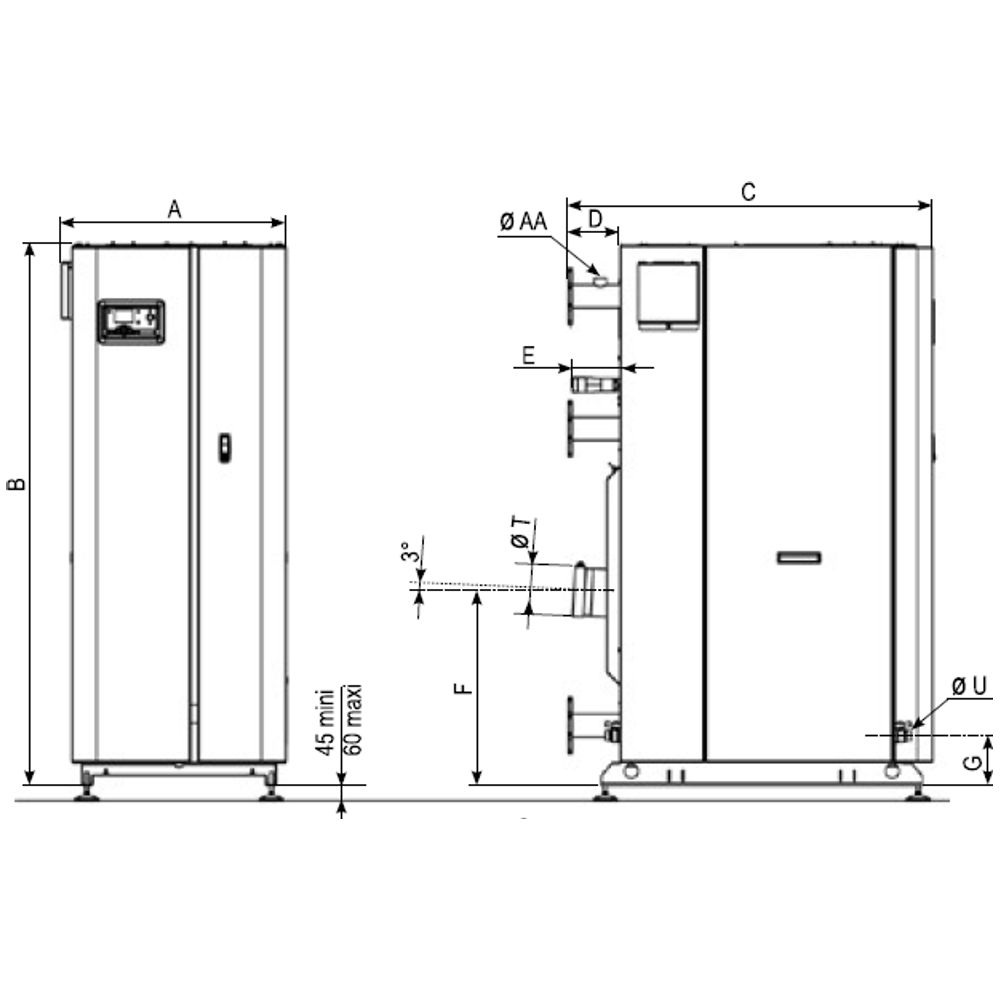

Adancime (C) (mm)

1341

Alimentare electrica

1 x 230V / 50 Hz

Alimentare gaz

2"

Clasa Nox (cf EN656 si EN13836)

6

Cod MFG

041513-806

Continut de apa in cazan (l)

239

Eficienta la 30% (retur 30°C) (%)

108

Eficienta la Qmax cu 50°/30°C (%)

105.5

Eficienta la Qmax cu 80°/60°C (%)

97.9

Golire

1"

Inaltime (B) (mm)

1877

latime (A) (mm)

812

Masa (kg)

502

Model

VARMAX 320

Presiune maxima (bar)

6

Putere electrica consumata (la Qnom) (W)

352

Putere termica maxima (50°/30°C) (kW)

338.0

Putere termica maxima (80°/60°C) (kW)

312.0

Racord aspiratie (mm)

180

Racord refulare (mm)

180

Racorduri hidraulice

DN65

Temperatura maxima (°C)

85
